Duplex Roller Driving Chain Coupling Transmission Drive Chains
Quick Details
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Food & Beverage Shops
Standard or Nonstandard: Standard
Type: Roller Chain
Material: ALLOY
Tensile Strength: high tensile strength
Place of Origin: Zhejiang, China
Brand Name: UCER
coupling chain name: duplex roller driving chain coupling chains
coupling chain Type: duplex Driving Chain
OEM service: accept
heat treatment: all the chain parts undergo heat treatment
Color: black & gray & colourful
Coupling chains pitch: 12.7 - 38.1 mm
Coupling chains roller diameter: 7.95 - 22.23 mm
Production maker: china manufacturer
Coupling chain field of use: Shaft Couplings
Size&capacity: pls reference to the form

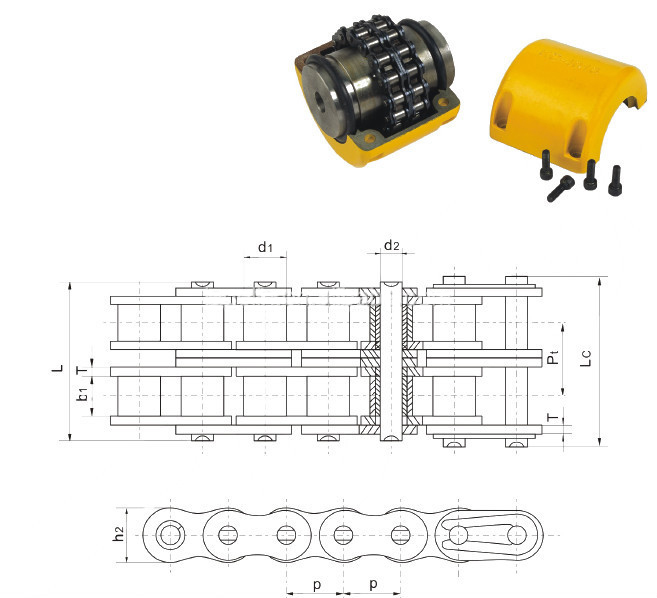

| ANSI Chain No. UCER | Pitch | b1 min mm | d1 max mm | d2 max mm | L max mm | Lc max mm | h2 max mm | T max mm | Pt mm | U.T.S KN | A.T.S KN | q ≈ kg/m |
| 4012 | 12.7 | 7.85 | 7.95 | 3.96 | 31 | 32.2 | 12 | 1.5 | 14.38 | 28.2 | 35.9 | 0.16 |
| 4014 | 12.7 | 7.85 | 7.95 | 3.96 | 31 | 32.2 | 12 | 1.5 | 14.38 | 28.2 | 35.9 | 0.19 |
| 4016 | 12.7 | 7.85 | 7.95 | 3.96 | 31 | 32.2 | 12 | 1.5 | 14.38 | 28.2 | 35.9 | 0.21 |
| 5014 | 15.875 | 9.4 | 10.16 | 5.08 | 38.9 | 40.4 | 15.09 | 2.03 | 18.11 | 44.4 | 58.1 | 0.49 |
| 5016 | 15.875 | 9.4 | 10.16 | 5.08 | 38.9 | 40.4 | 15.09 | 2.03 | 18.11 | 44.4 | 58.1 | 0.56 |
| 5018 | 15.875 | 9.4 | 10.16 | 5.08 | 38.9 | 40.4 | 15.09 | 2.03 | 18.11 | 44.4 | 58.1 | 0.63 |
| 6018 | 19.05 | 12.57 | 11.91 | 5.94 | 48.8 | 50.5 | 18 | 2.42 | 22.78 | 63.6 | 82.1 | 1 |
| 6020 | 19.05 | 12.57 | 11.91 | 5.94 | 48.8 | 50.5 | 18 | 2.42 | 22.78 | 63.6 | 82.1 | 1.11 |
| 6022 | 19.05 | 12.57 | 11.91 | 5.94 | 48.8 | 50.5 | 18 | 2.42 | 22.78 | 63.6 | 82.1 | 1.22 |
| 8018 | 25.4 | 15.75 | 15.88 | 7.92 | 62.7 | 64.3 | 24 | 3.25 | 29.29 | 113.4 | 141.8 | 2.35 |
| 8020 | 25.4 | 15.75 | 15.88 | 7.92 | 62.7 | 64.3 | 24 | 3.25 | 29.29 | 113.4 | 141.8 | 2.62 |
| 8022 | 25.4 | 15.75 | 15.88 | 7.92 | 62.7 | 64.3 | 24 | 3.25 | 29.29 | 113.4 | 141.8 | 2.88 |
| 10022 | 31.75 | 18.9 | 19.05 | 9.53 | 76.4 | 80.5 | 30 | 4 | 35.76 | 177 | 219.4 | 4.95 |
| 12018 | 38.1 | 25.22 | 22.23 | 11.1 | 95.8 | 99.7 | 35.7 | 4.8 | 45.44 | 254 | 314.9 | 8.14 |
Packing Delivery Shipping
Packaging details : a couplings chain + a poly bag + individual box + a wooden case
Delivery Details:
Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.
